Thyristor controller without network feedback

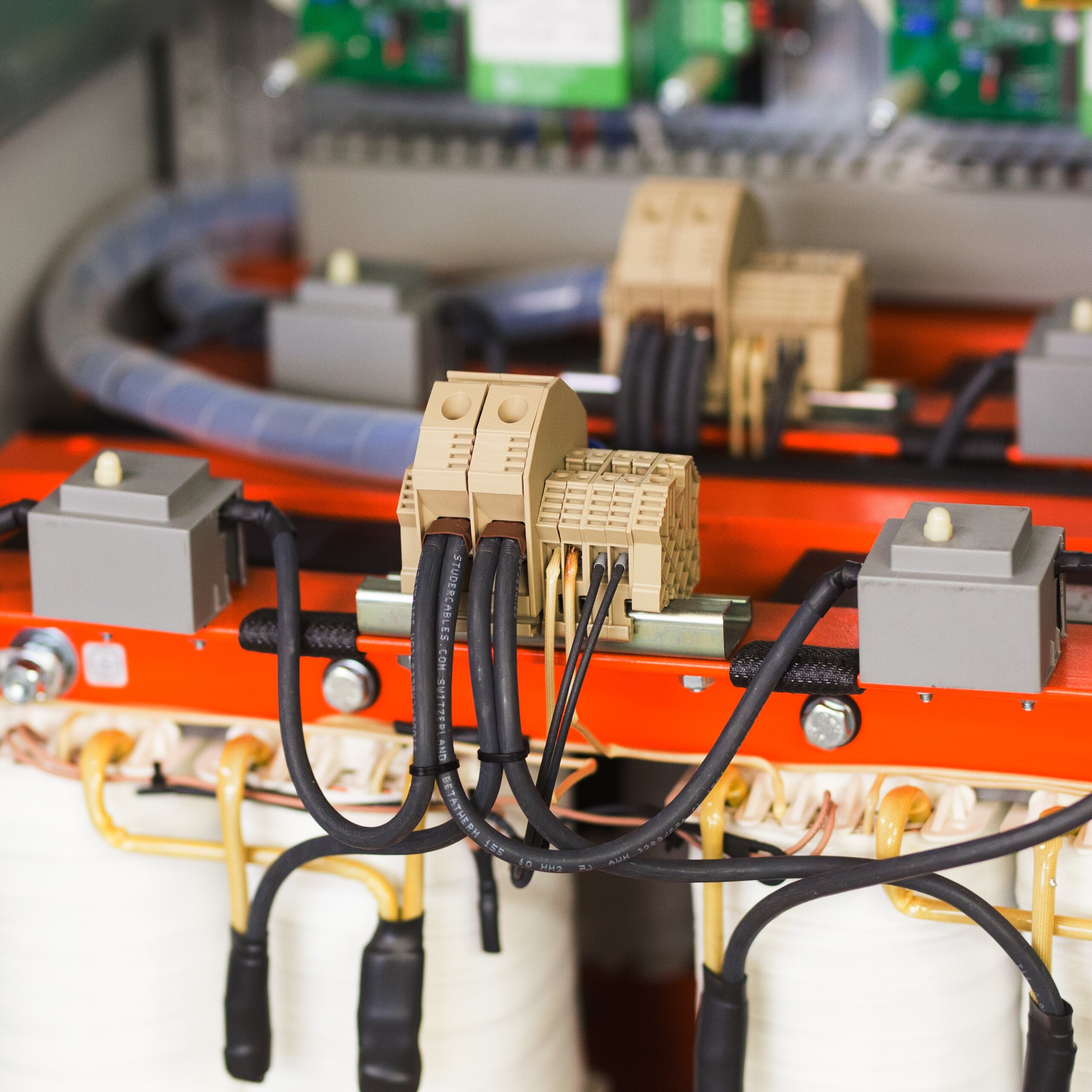

Transducer
Description
Information:
- The major advantage of this circuit lies in the almost harmonic-free grid feedback. This is achieved by the large flux angle δ and the transformer choke combination connected upstream.
- Conditionally short-circuit proof
- Outputs of 10kVA – 400 kVA achievable
- Robust and maintenance-free due to magnetic technology and design similar to power transformers
- Short delivery times, even for special voltages, thanks to modular construction
- Depending on the size of the transformer and choke built into one module, or transformer and choke set built separately
